First Steps With An Evilcrow Cable Wind

by Sam Hadow

This blog post is a guide on how to flash an EvilCrow Cable Wind and how to use it running your first payload. The model used in this blog post is the USB A to USB C version. This guide also assumes you’re using a linux distribution as your operating system, preferably Archlinux.

Steps

1. Preparing the environment

1.1. Installing Arduino IDE and the required libraries

First install esptool and pyserial, on Archlinux this can be done with the command sudo pacman -S esptool python-pyserial
Then install the Arduino IDE. On Archlinux it’s available in the AUR as the package arduino-ide-bin.

Once it’s installed, you’ll need to add 3 libraries in your Arduino library directory (usually located in ~/Arduino/libraries).

• copy and unzip the USB library included in the repository in EvilCrowCable-Wind/modified-libraries/
• copy and unzip the husarnet-esp32-arduino library included in the repository in EvilCrowCable-Wind/modified-libraries/
• download the ArduinoJSON library with git clone https://github.com/bblanchon/ArduinoJson.git

1.2. Installing the boards manager

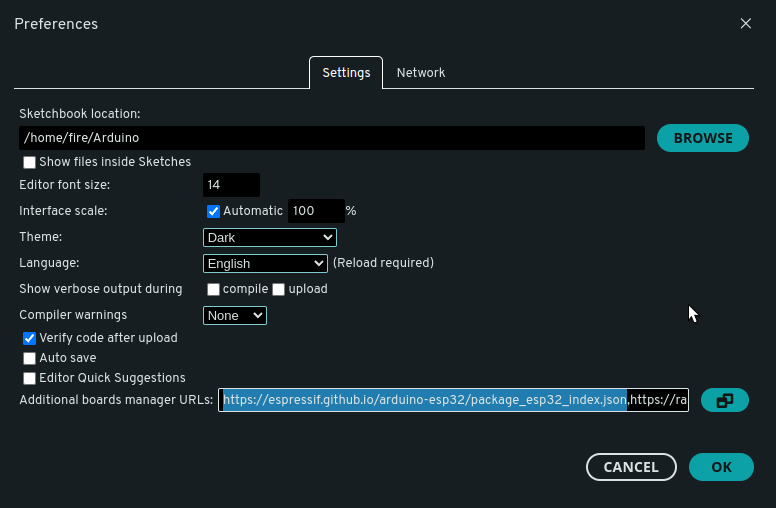

Open Arduino IDE and go to File > Preferences and in the field “Additional Board Manager URLs:” add

https://espressif.github.io/arduino-esp32/package_esp32_index.json

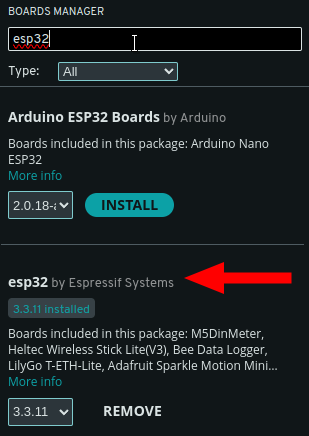

Then in Tools > Board > Boards Manager, search for “esp32” and install “esp 32 by Espressif Systems”

2. Flashing the firmware

2.1. Plugging the EvilCrow Cable Wind in flash mode

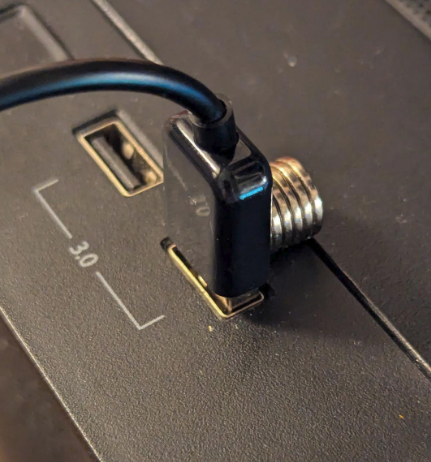

Place a magnet on the active end (USB A) of the EvilCrow Cable Wind and connect it to the computer, it should be recognized as “USB JTAG/serial debug unit” in dmesg (sudo dmesg --follow). Example output:

[ 4371.460527] usb 1-9: new full-speed USB device number 32 using xhci_hcd
[ 4371.585041] usb 1-9: New USB device found, idVendor=303a, idProduct=1001, bcdDevice= 1.01
[ 4371.585060] usb 1-9: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 4371.585068] usb 1-9: Product: USB JTAG/serial debug unit
[ 4371.585075] usb 1-9: Manufacturer: Espressif
[ 4371.585080] usb 1-9: SerialNumber: 10:51:DB:38:6E:9C
[ 4371.589316] cdc_acm 1-9:1.0: ttyACM0: USB ACM device

2.2. Flashing the firmware

Open EvilCrowCable-Wind/firmware/firmware.ino in Arduino IDE from the repository. You can modify in this file the password and SSID of the access point the ESP32 will try to connect to. By default it’s Evil Crow Cable Wind for the SSID and 123456789 for the password. I recommend changing these values.

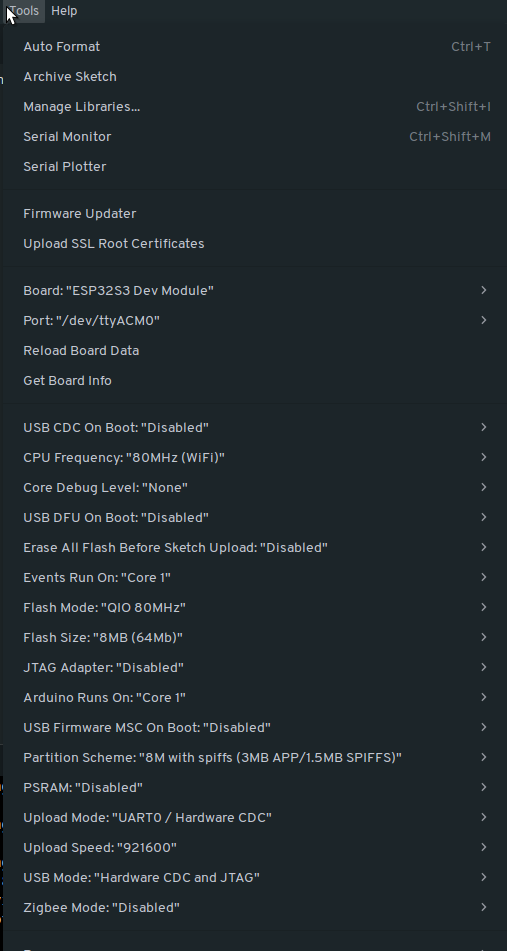

Then in Tools, select your port and the board “ESP32S3 Dev Module”, in my case the port is ACM0, but it could be USB0 or another port. And configure all the parameters as follow:

Specifically:

3. Using the EvilCrow Cable Wind

3.1. Connecting to the cable

Upon start the EvilCrow Cable Wind will try to connect to a network with the SSID and password specified in the firmware, so first setup an access point with a phone or laptop and then plug in the active end (USB A) of the EvilCrow Cable in a computer.
Theorically the cable should be accessible at http://cable-wind.local but it doesn’t work well with a phone.
Instead you can connect a laptop (or use the laptop with the access point) to the access point and directly find the IP address of the cable.

• If you have a laptop setup as an access point:

  ip neighbor


• If you connected a laptop to the access point:

  ip route


  A possible output is:

  default via 10.27.197.13 dev wlp2s0 proto dhcp src 10.27.197.114 metric 600
  10.27.197.0/24 dev wlp2s0 proto kernel scope link src 10.27.197.114 metric 600


  Then force the discovery of the devices on this subnetwork

  sudo nmap -sn 10.27.197.0/24


  And find the host Espressif

  Nmap scan report for 10.27.197.126
  Host is up (0.21s latency).
  MAC Address: XX:XX:XX:XX:XX:XX (Espressif)


  You can then connect to the cable with this IP address.

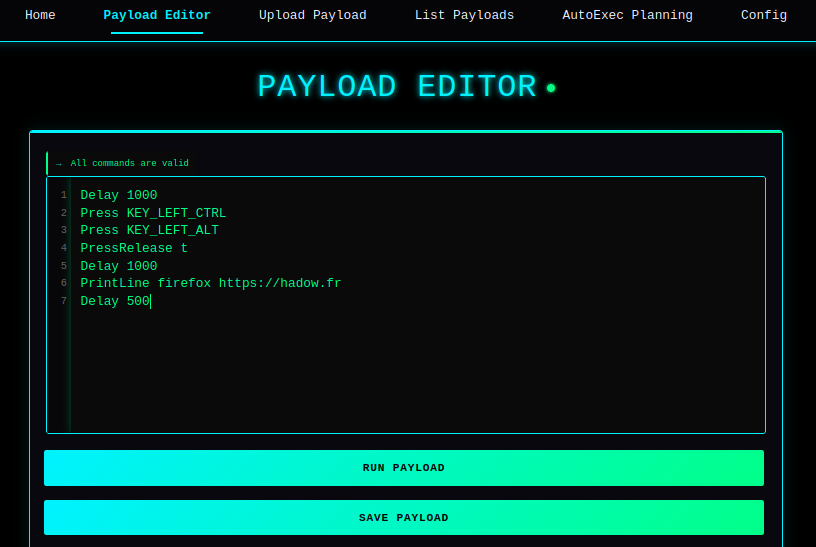

3.2. Writing your first payload

For example to payload a Linux running a desktop with CTRL+ALT+T shortcut to open a terminal (Like Gnome, KDE Plasma, XFCE, etc…) and open my website in firefox:

Delay 1000
Press KEY_LEFT_CTRL
Press KEY_LEFT_ALT
PressRelease t
Delay 1000
PrintLine firefox https://hadow.fr
Delay 500

As you can imagine, you can run much more complex payloads targeting a wide range of environments. As such it should be treated as a serious security tool, not as a harmless gadget or toy.
This is also why the paranoia around unknown USB cables isn’t entirely unjustified: you can’t always tell what’s hiding inside a cable. Use it only on systems you own or have explicit permission to payload.
